Pattern makers vise

A luthiers best friend!

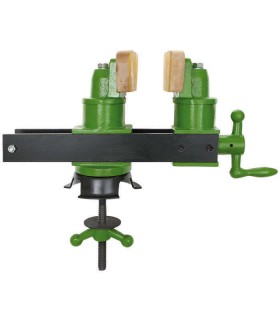

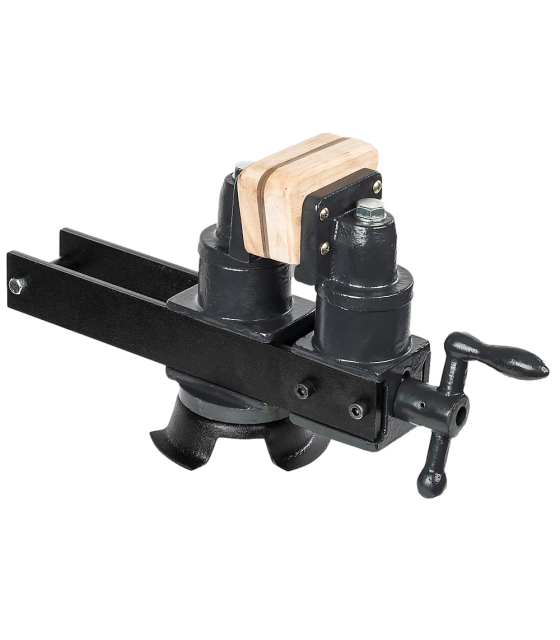

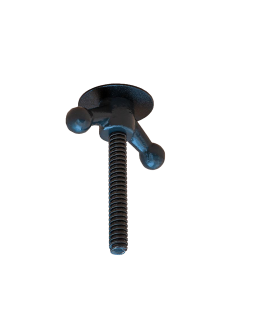

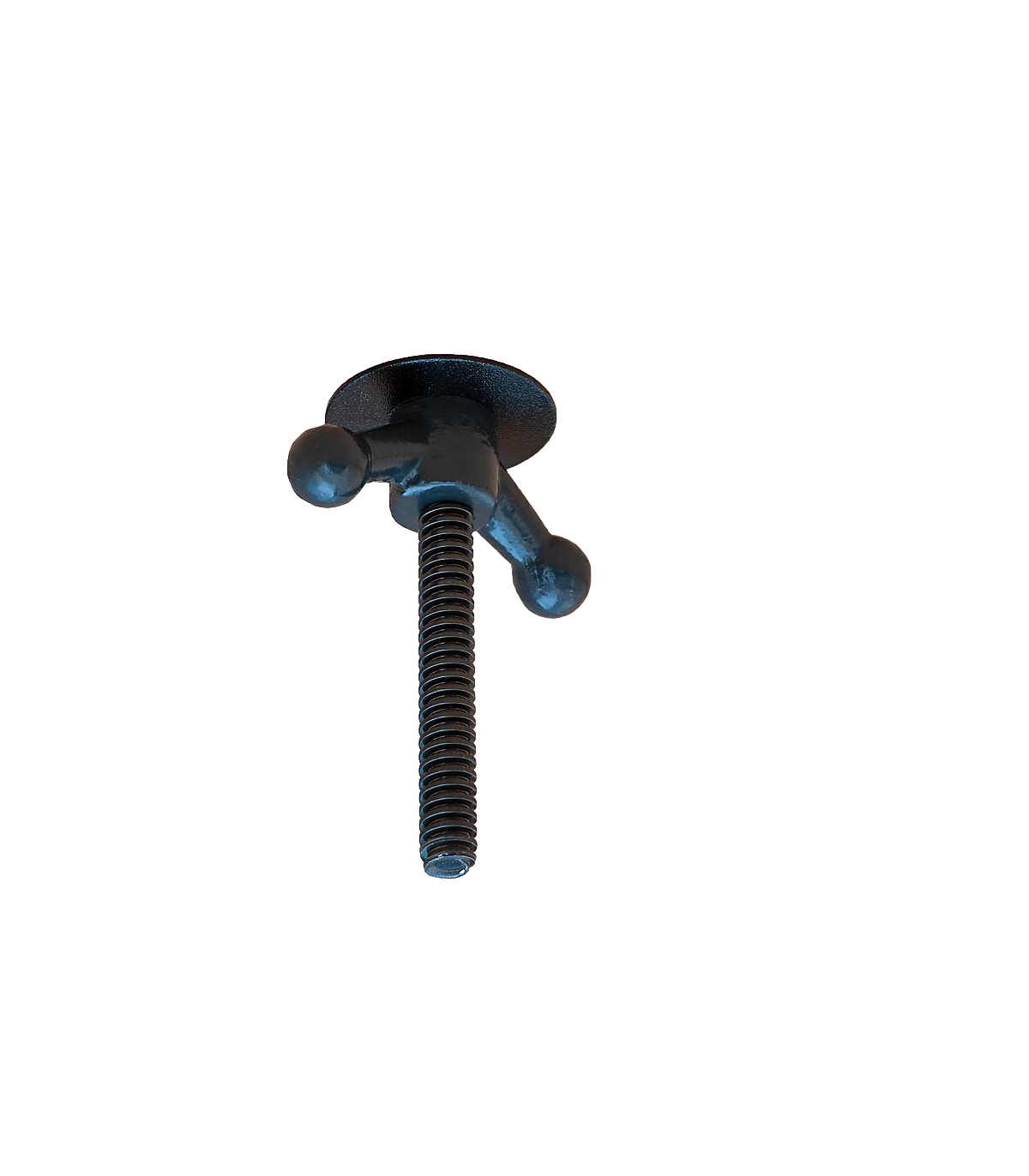

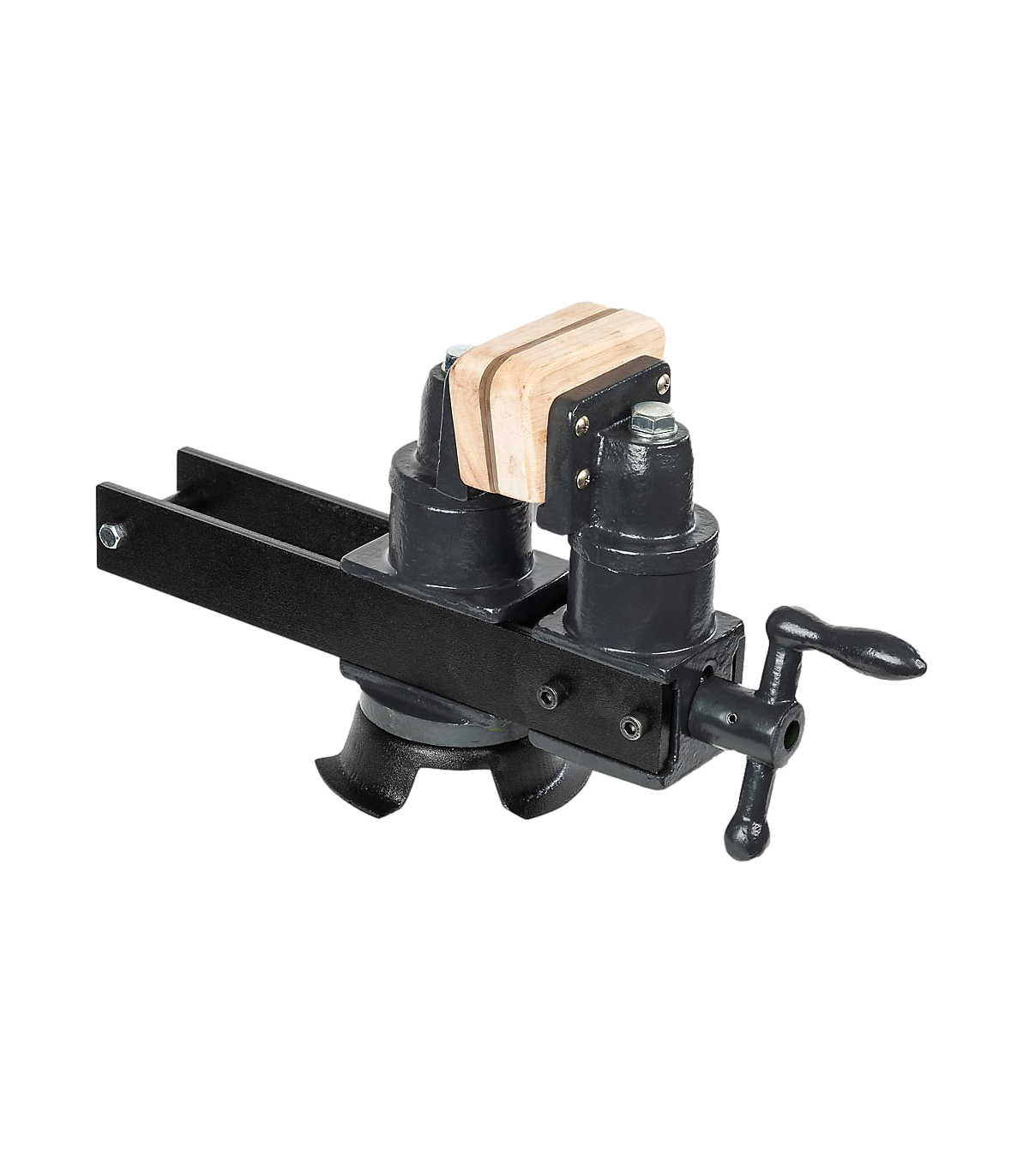

The solid grey cast iron construction is equipped with a parallel guide for the jaws that rotate to allow the clamping of pieces of any shape without damaging them. The vice is mounted through a hole or a bench dog hole. Once mounted, it can be easily swivelled a full 360° and locked in place via a winged nut. The swivel base can be either mounted above the bench top (working height 250 mm) or below (working height 215 mm). Grey cast iron body, steel guide rails, trapezoidal threads on the spindle with hand crank, softwood jaws with soft polyurethane linings. Max. bench top thickness 130 mm.

• Jaw opening 150 mm
• Weight 14 kg
• Jaw width 125 mm
